Hello Tannoy Fans .. firstly, apologies, we have many crossovers for sale, we sold over 1000 pairs so far, for many models, from under £200 to over £800, from great new caps types, to PIO (Paper in Oil) vintage caps, hand made to top quality PCB types, so, if you are confused, just send me an email …
Tell me, approx budget, your drivers, your cabinet, your wishes, I will make suggestions from low too high. We are the No 1 provider in the world of new crossover solutions.
IMPORTANT WE HOLD PARTS IN STOCK, SO USUALLY DESPATCH APPROX 1-2 WEEKS, HOWEVER, IF WE RUN OUT, LEAD TIMES FOR CAPACITORS 4-6 WEEKS, IF DELIVERY URGENT ... ASK.
Firstly, if you have an original pair of DMT crossovers, they were pretty good, I suggest just upgrade the caps, these crossovers are aimed at people on new builds or lost, damaged crossovers.
New pair TANNOY "VS Series", VS = VERY SPECIAL & VERY SUPERIOR series.
Specially for System 15 DMT Mk1 Mk2 crossover crossovers.
(We also make for System 12, System 215, FSM215).
CAPACITOR OPTIONS:

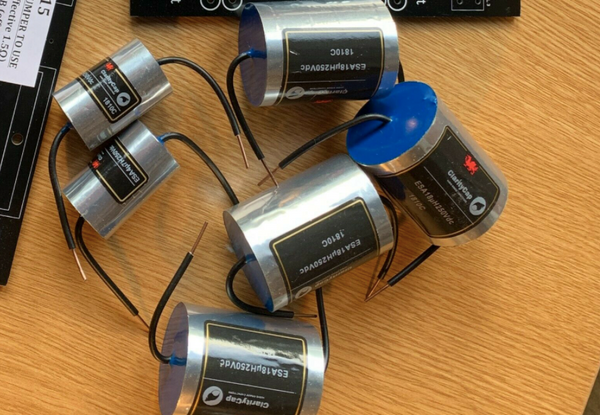

1) with Jantzen Cross Caps. 2) with Clarity ESA Caps. 3) discuss your needs, cap choice etc.
(use drop down box to choose).
OUTLINE SPEC:
For System 15 DMT (Mk1 or Mk2 - discuss). We can follow Mk1 or Mk 2 or hybrid version (recommended). INPUT / OUTPUT OPTIONS - nothing, terminal blocks, wires i/p, o/p wires with spades. HF OPTIONS. 1) fixed on level. 2) as per original, jumper links "level", "boost +1.5dB, "cut -1.5dB". LF inductor - Jantzen Air core 1.2mm wire. All resistors Jantzen wire wound 10, 15, 20 watt as appropriate. These do not connect to any external controls.
FULL SPECIFICATION:
Specifically designed for: System 15 DMT

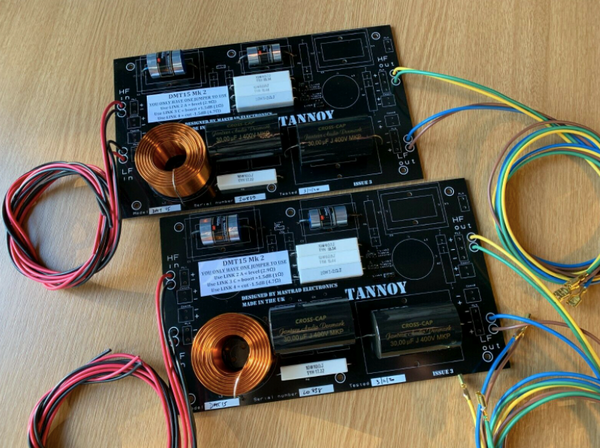

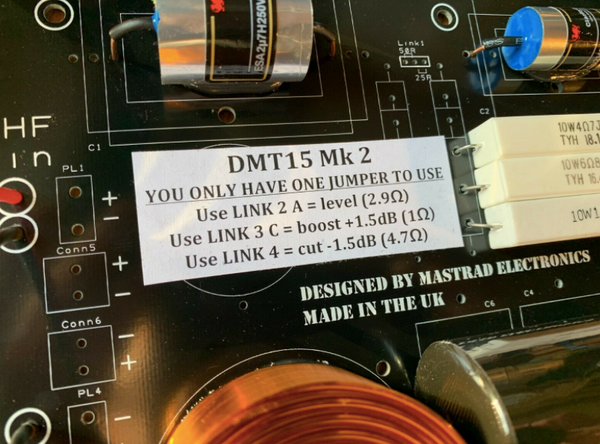

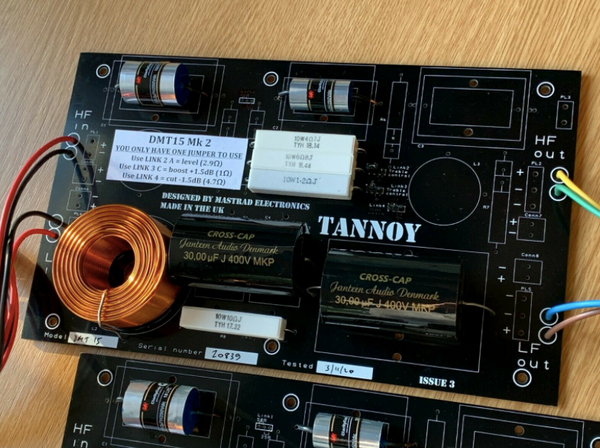

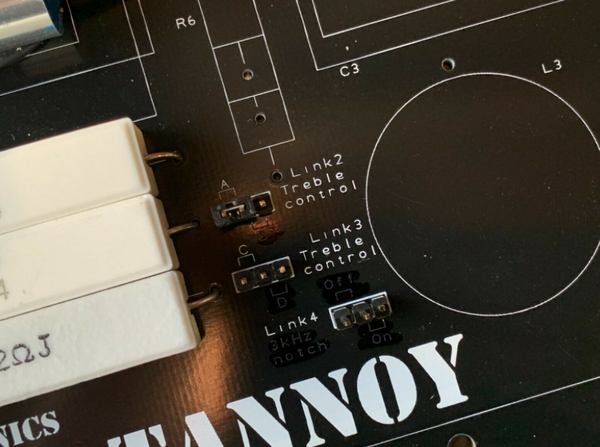

The Mk3 version: Bigger size - allows room for more & different components, bigger inductors, bigger capacitors (old was 150 x 150mm, new is 150 x 250mm). Better gold plated tracks on 2oz copper. Military grade PCBs. Link jumpers - for treble standard, cut & boost. Link 2, 3 & 4 – these adjust the HF "level", "boost +1.5dB, "cut -1.5dB"
Track design - gold plated tracks on 2oz copper, design to replicated point to point wiring, using a high grade 1.6mm FR4 (high grade flame retardant) printed circuit board, track layout designed with the “star” earthing principle, with 2 separate isolated independent circuits, one for HF, one for LF.
Mounting – conveniently provided with 6 black grommets are provided as mounting “spacers”, along with 6 suitable screws.
The sound - Your speakers will be just that bit fresher and brighter, customer’s say they just sound better.
Based closely on the Tannoy circuits, with a few tweaks.
Use as an upgrade over the Tannoy standard crossovers, or replacement if yours is missing or faulty.
Full frequency tested with from 10 to 30kHz.
Input cables – (if ordered) set up for standard 2 wires use, also for 4 wire bi-amp. –
There are 2 separate isolated circuits, one for HF and one for LF, then 4 input cables are provided will be quality copper 1.0mm sq also.
For regular 2 wire input, just connect 2 reds and 2 black together.
Output cables - (if ordered) supplied with 4 output cables (2 for LF, 2 for HF),

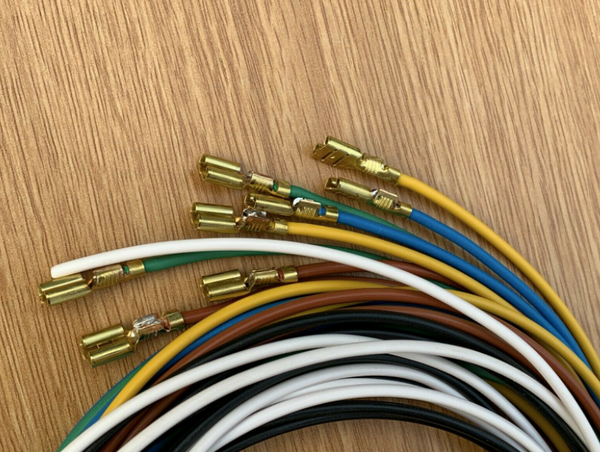

1 metre (longer on request) with quality copper 1.0mm sq wire, with 1/4" spades.

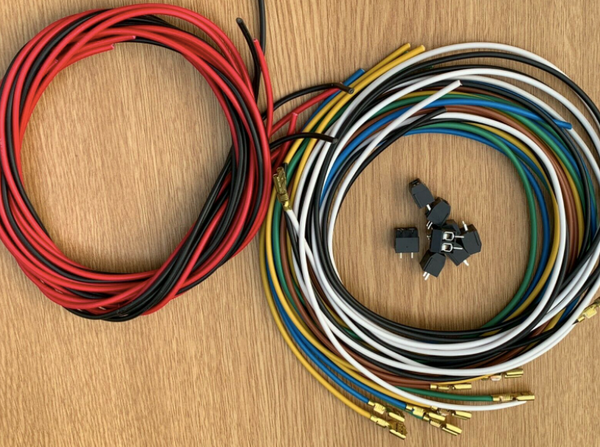

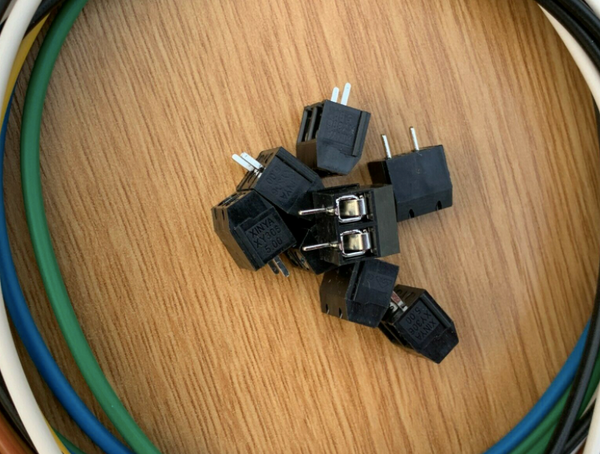

Cable options - no wires at all, terminal blocks, wires & spades, any combination of.
